DP-B Spare

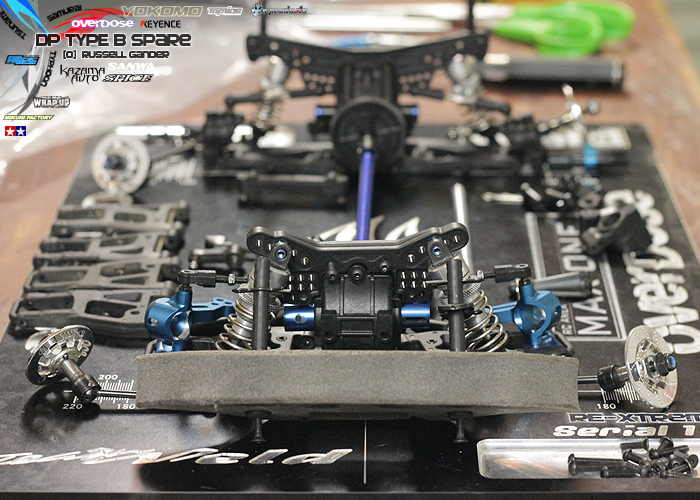

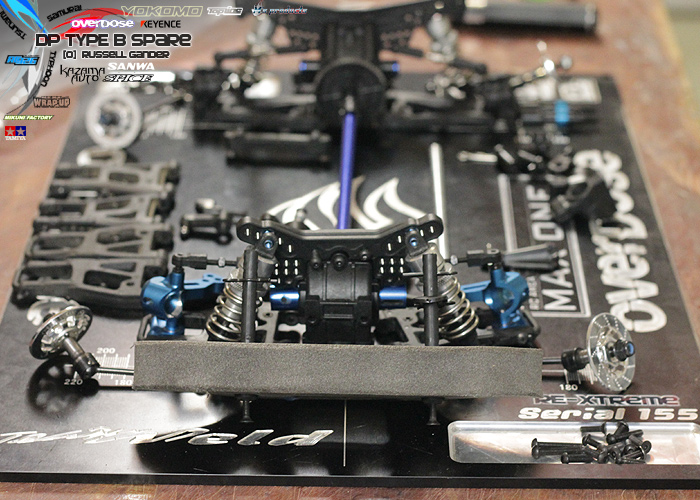

Here is what I have leftover.... Almost enough to complete an Imadoki conversion.



Front oneway and rear spool (rear bearing? where did it go?)



The rear gear box also missing the inner input shaft bearing. where did it go?


But I have the main parts. An Ima doki conversion maybe a good donor.


front type B 10 deg and DPM knuckles.  one of them has scarring on the inside.


front CVDs are good. But there are no wheel bearings.


Upper arm is using OTA- style turnbuckle.


rear is using dog-bones. I also have these +6mm TN racing axles. good for HPI bodies with the wider rear.


2 sets of hubs. no sus pins. :(

HPI shocks snap on to the mounts which is good.


Full HEX chassis  screw set.


that ugly spur. Its a bit damaged. But the big missing item is the motor mount.


perhaps it could be turned into a mount. for my spares Spare springs.


Spare arms. Steering is from SSG Stage 3 conversion. Maybe it could work in an Imadoki.



front gear case upper tower mount is stripped. would need drilling and a bolt on the rear. no drama.


but it's not too far off.  bumper mounting plate is missing. These are 5mm posts on the front. not 4mm.


What to do? Hmm. Imadoki conversion might get most of what I need, chassis, Motor Mount and newer steering components.

I went to the trouble of working out a possible completion path with Yen prices without discounts.


Yokomo Type B Plastic Chassis

Molded Main Chassis SD-002MC 3500
F&R Suspention Mount (Separate Type) SD-300M 580
Quick Battery Mount SD-118R 400
Motor Mount SD-304M 1980
Steering belcrank (high angle) D-109 550
Plastic Chassis Sub total
7010
Front Bumper SD-001 380
Chassis Brace SD-002B 780
Aluminium Steering Crank post. D-029 550
Hard Suspention Arm Pin Set SD-009 720
Aluminum Spur Gear Adaptor D-024 1200
Rod End Steel Ball ZC-206 120
Shock cap ball YS-8B-1 480
transmission case SD-302 980



Sub total
12220
required bearings

φ10×φ6mm Bearing for Universal BB-106-2 0
φ14×φ8mm Ball Bearing transmission BB-1480-2 0
φ10×φ15mm Ball Bearing BB-1510 0
yokomo full set

Super Precision Ball Bearing Set (23pcs) SD-BBP 0
Replacement Bearing set (China) Ebay Link 1400



TOTAL
13620

So I would be looking at around  $130 to complete a Type B
If i used a Full type Basic as a donor it would be about $160 (with wheels and tyres)


Yokomo SSG Imadoki Chassis Conversion set D-102 18000
Front Bumper SD-001 380
Chassis Brace SD-002B 780
Aluminium Steering Crank post. D-029 550
Hard Suspension Arm Pin Set SD-009 720
Aluminum Spur Gear Adaptor D-024 1200
Rod End Steel Ball ZC-206 120
Shock cap ball YS-8B-1 480
transmission case replacement SD-302 980



Sub total
23210
required bearings

φ10×φ6mm Bearing for Universal BB-106-2 0
φ14×φ8mm Ball Bearing transmission BB-1480-2 0
φ10×φ15mm Ball Bearing BB-1510 0
yokomo full set

Super Precision Ball Bearing Set (23pcs) SD-BBP 0
Replacement Bearing set (China) Ebay Link 1400





24610

If I used an Imadoki conversion to complete I'd be up for $240

it's fun to dream.

2 comments:

  1. You can possibly even save some more money and go for a Ject Racing Triple Converter Mars conversion :P

    I believe maker price is 13,650 jyp opposed to 18,000 jyp Imadoki conversion.

    ReplyDelete
  2. Ject would be nice.
    Imadoki is usually around 15200Yen
    I'm thinking.

    ReplyDelete
