Wednesday, November 30, 2011

D-Like RE-R - Under the hood! Part #4

Today's job was to setup the sensors and get everything tested.

Thermometer sensor is simply taped to the motor.

RPM sensor is a light sensitive device. luckily I found a mounting solution. An old servo crank worked very well and adjust position easily!!! YAY RUSS!!!

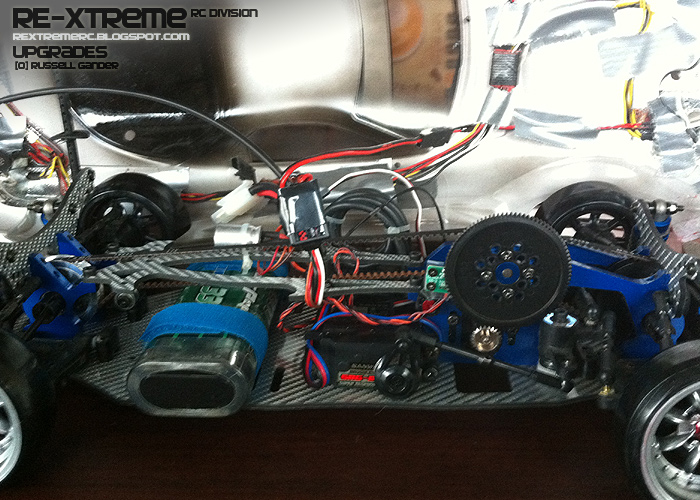

So it's all installed. I need a soldering Iron to get everything shortened and sorted, but for now it's functional.

Unfortunately my Futaba Switch is incompatible so the lights are half off at the moment. It's a mess under there. I'll need a driver to hide everything.
